Enterprise Winding Design
- Designed for coil winding shops & service centers
- Validation of winding & motor failure reasons
- Allow redeisgn of motor voltage, speed, HP/ KW, Operating Temperature, and other characteristics
- Flexibility of chossing difference wire sizes
- Build in Transient turn to turn protection calculation
- Automatic winding clearance analysis for fit & function
- Bill of Material for cost and inventory
- Auto Database storage & retrieval

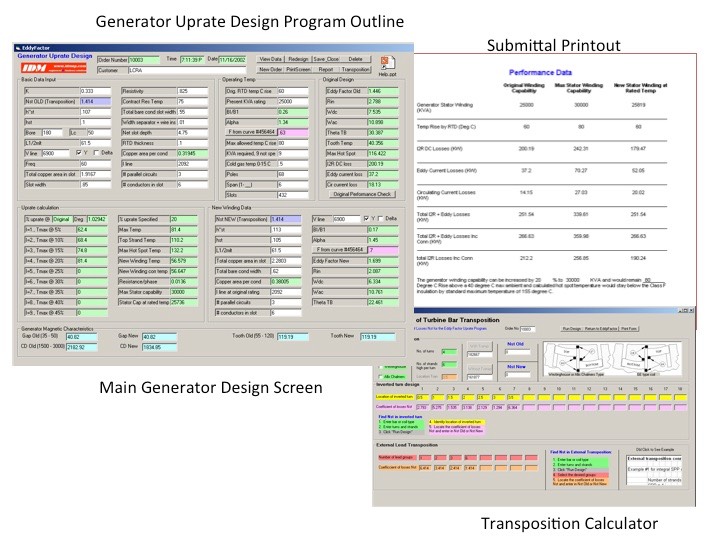

Generator Uprate Design
- Designed for Hydro & Turbine Generators
- Internal & External Transposition
- Roebel bar design & transposition
- Loss calculation including eddy & skin effect
- Wire size consideration in loss calculation
- Thermal modelling for heat rise prediction
- “Whats if” scenario for updates options
- Graphical charts for winding configurations
- Ouput uprate summary & coil drawing for bid submittal
Reactance & Transient Protection
- For synchronous wound rotors Generators
- Inputs for stator lamination thickness, stacking factor, slot shape, dimensions, winding configuration, size sizes, wedge groove
- Inputs for rotor pole shape and dimension, damper bar openings, diameters, material, and configurations
- Inputs for rotor winding, wire size, turns, etc
- Output calucations for reactances, transient, sub transients, direct and quadrature axis
- Provides quick “What’s if” modeling
- Bonus - magnetic bar force calculator
Induction Motor Performance
- For squirrel cage bar & wound rotor designs
- Full inputs for stator lamination design, slot configurations & winding design
- Full rotor lamination design, bar shape, material, and configuration
- Full damper bar shape, material and end winding configuration
- Build in comprehensive magnetic, skin effect, and eddy losses calculations
- Accurate analysis with graphic output of speed & torque outputs
- Easy “What’s if” scenario calculations
